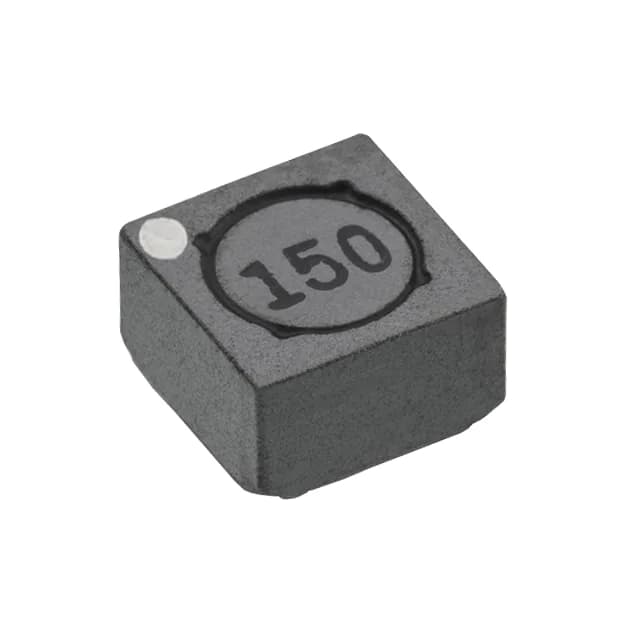

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 7448841220 由 Würth Elektronik 生产，属 Arrays, Signal Transformers 类元器件。型号系列：WE-DPC HV。封装：Nonstandard。工作温度：-40°C ~ 125°C。生命周期：Active。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| RoHS | RoHS |
|---|---|
| Height | 0.122" (3.10mm) |
| Ratings | - |
| Shielding | Shielded |
| Tolerance | ±20% |
| Number of Coils | 2 |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Current Rating - Series | - |
| Current Rating - Parallel | 800 mA |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Series | - |
| Current Saturation - Parallel | 1 A |
| DC Resistance (DCR) - Parallel | 650mOhm |
| Inductance - Connected In Series |
| - |
| Inductance - Connected In Parallel | 22 µH |
|---|
