| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 14nC |
| Power - Max | 83W |
| Test Condition | 400V, 5A, 60 Ohm, 15V |
| Switching Energy | 80µJ (on), 70µJ (off) |
| Td (on/off) @ 25°C | 8.5ns/106ns |

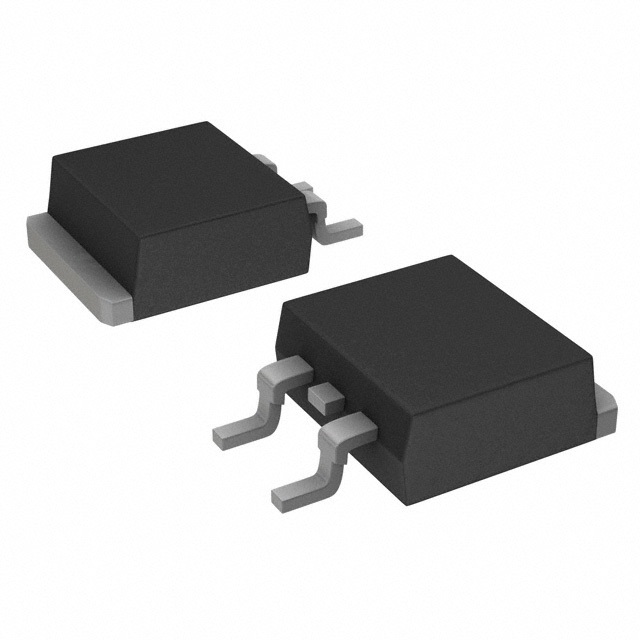

| Supplier Device Package | TO-263 (D2Pak) |
| Vce(on) (Max) @ Vge, Ic | 1.98V @ 15V, 5A |
| Reverse Recovery Time (trr) | 195ns |
| Current - Collector (Ic) (Max) | 10A |
| Current - Collector Pulsed (Icm) | 15A |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
