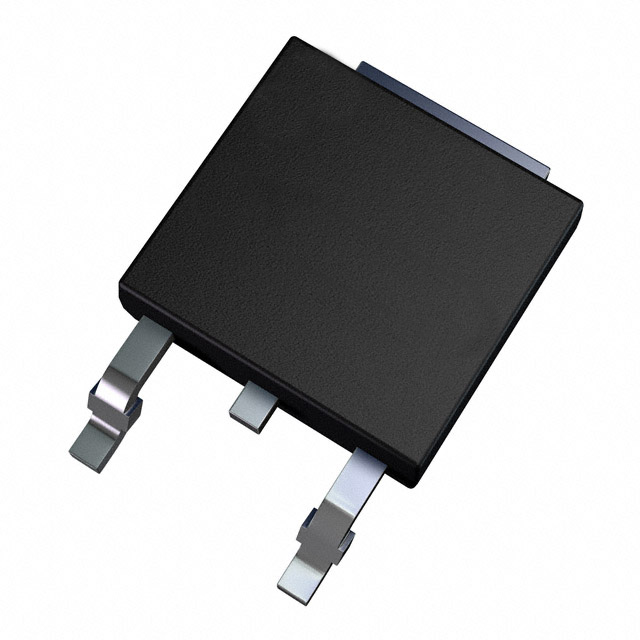

XinhSemi（xinhansemi.com）由深圳市芯瀚未来电子科技有限公司运营，是面向全球的独立电子元器件分销商。本页列出的 AOD5B65M1 由 Alpha & Omega Semiconductor Inc. 生产，属 Transistors - IGBTs - Single 类元器件。封装：TO-252-3, DPak (2 Leads + Tab), SC-63。工作温度：-55°C ~ 150°C (TJ)。生命周期：Active。深圳仓库现货，支持全球直发。需要批量报价或确认交期，请使用页面右侧"加入询价单"，销售将在 1 个工作日内联系您。— xinhansemi.com
| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 14nC |
| Power - Max | 69W |
| Test Condition | 400V, 5A, 60 Ohm, 15V |
| Switching Energy | 80µJ (on), 70µJ (off) |
| Td (on/off) @ 25°C | 8.5ns/106ns |
| Supplier Device Package | TO-252 |
| Vce(on) (Max) @ Vge, Ic | 1.98V @ 15V, 5A |
| Reverse Recovery Time (trr) | 195ns |
| Current - Collector (Ic) (Max) | 10A |
| Current - Collector Pulsed (Icm) | 15A |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
