| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 25.4nC |
| Power - Max | 167W |
| Test Condition | 400V, 15A, 20 Ohm, 15V |
| Switching Energy | 420µJ (on), 110µJ (off) |
| Td (on/off) @ 25°C | 21ns/73ns |

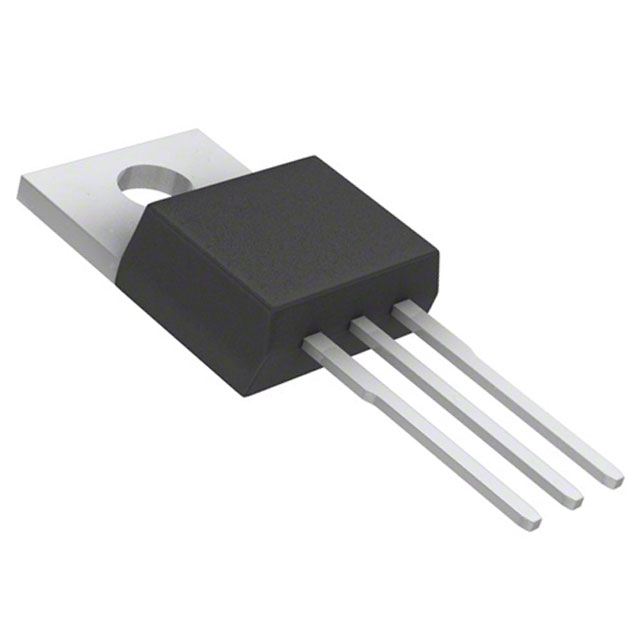

| Supplier Device Package | TO-220 |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 15A |
| Reverse Recovery Time (trr) | 196ns |
| Current - Collector (Ic) (Max) | 30A |
| Current - Collector Pulsed (Icm) | 60A |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
